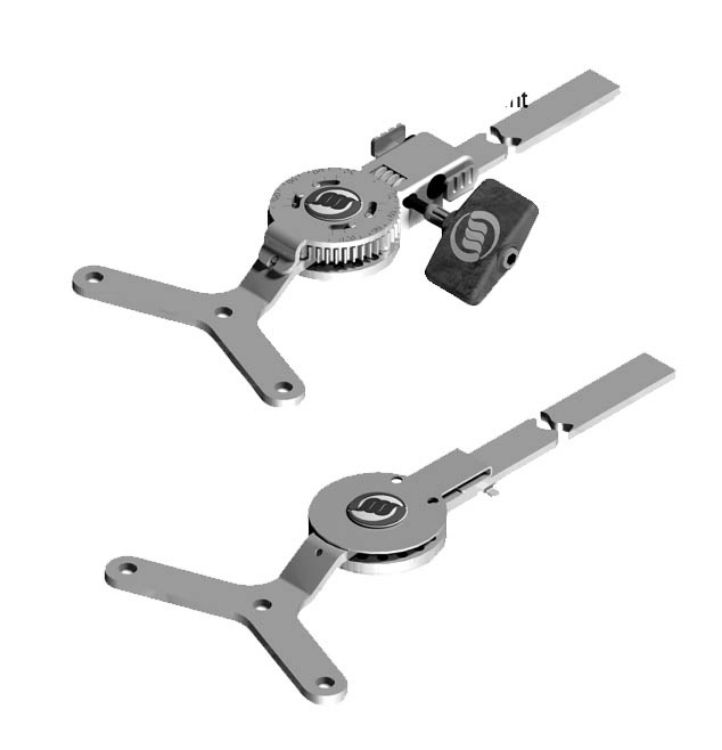

Ultraflex 3 Stainless Steel Ankle/Wrist ROM Joint

Ultraflex 3 Stainless Steel Ankle/Wrist ROM Joint

Ultraflex 3 Stainless Steel Ankle/Wrist ROM Joint is crafted from the martensic stainless steel and heat-treated to perfection, these joints provides strength and durability. Their bi-directional design allows for continuous adjustment within an impressive range of ±140º or 280º in total, helps make wrist braces for orthopedic rehab and treating muscle stiffness. It's not for walking.

Features and Benefits:

• Dynamic Range: Bi-directional joints offer a continuously adjustable range of ±140º or 280º total.
• Therapeutic Precision: Safety and therapeutic range lock in 20º increments, ensuring optimal patient outcomes.
• Convenience: Don-doff lock at any position within the 280º range streamlines usage and enhances patient comfort.
• Integrated Power Assists: Dynamic bi-directional power assists rated to 10.2 Nm (90 in·lb) provide targeted support during rehabilitation.
• Lightweight Design: With full struts, the ankle/wrist variant weighs only 250g (2.5 oz.), minimizing fatigue and maximizing mobility.
• Versatile Movement: Bi-directional joints offer a ±140º or 280º total range, catering to diverse therapeutic needs.
• Safety Features: Therapeutic range block in 20º increments ensures patient safety during rehabilitation sessions.
• Optimal Weight: With full struts, the ankle/wrist variant weighs a mere 170g (6 oz.), promoting comfort during extended wear.
• Premium Construction: Joints heads and struts crafted from ASTM A240/A240M Type AISI 410 Martensic stainless steel, heat-treated to HRC 38-42, and electropolished for impeccable finish and durability.
• Dimensional Specifications: Each joint measures 3.175mm(18”) x 12.7mm(1/2”) x 254mm(10”), offering precise compatibility with orthotic fabrication processes.
• Exceptional Strength: A-P static strength of 110 Nm (1000 in. lbs.) MAX ensures robust support for patients weighing up to 110kg (240 lb.) per pair of joints.
• Reliable Performance: M-L static strength of 55 Nm (500 in. lbs.) MAX guarantees stability and safety during therapeutic interventions.
